The outline is short 25mm Valfex

Details

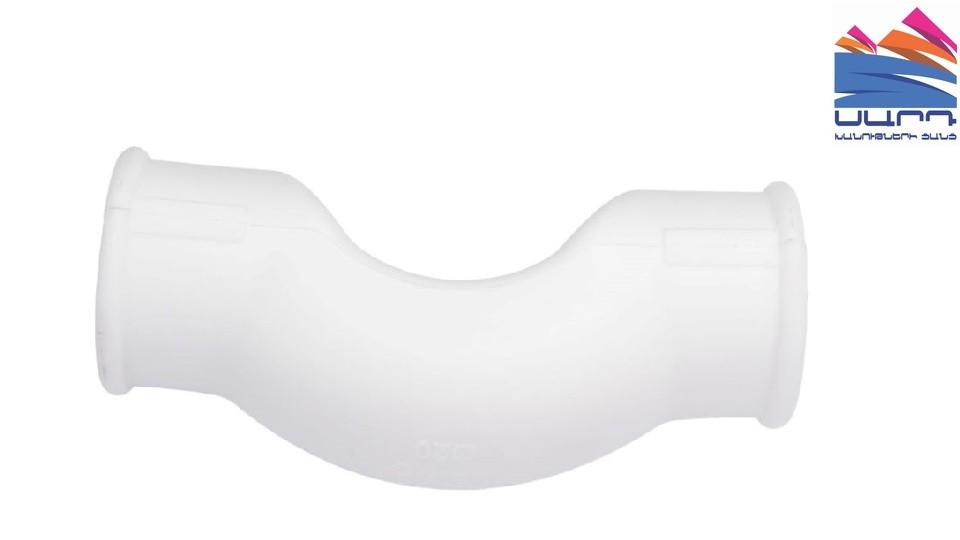

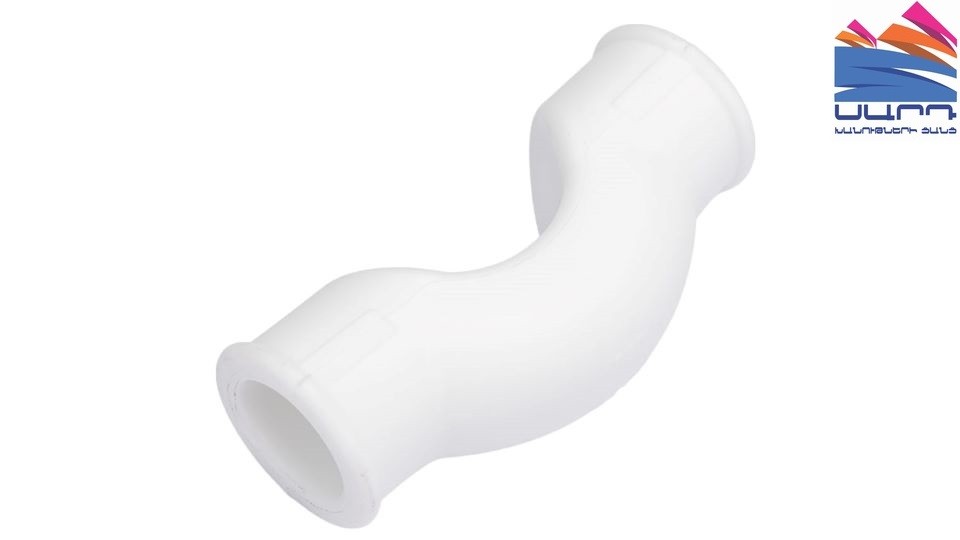

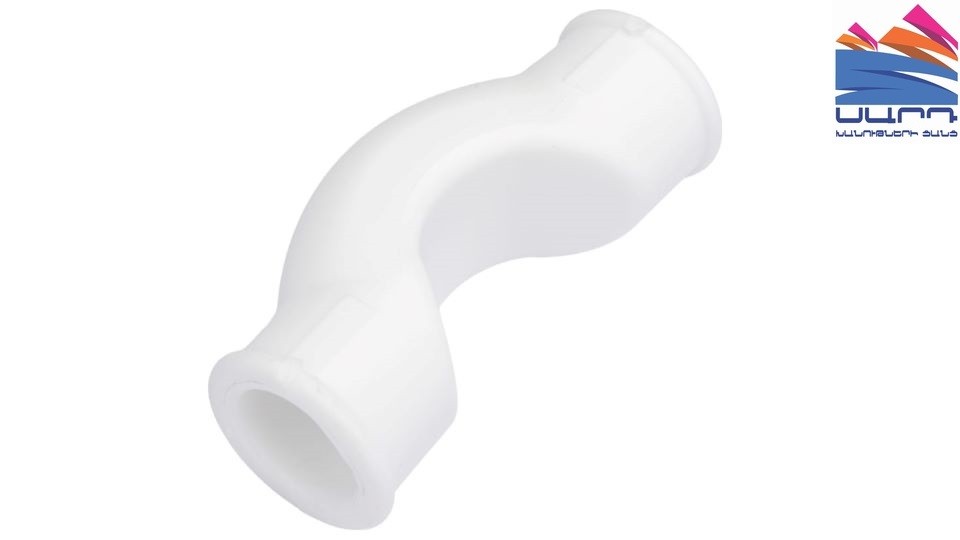

The bypass is short — fitting, designed for installation at the intersection of a polypropylene pipeline with a riser or some other obstacle. It is equipped with couplings for connecting pipes by bell welding. It is produced by injection molding.

Purpose: to place one pipe above another in the same wall plane.

Brand: Valfex

Code,
Connection diameter: (mm) 10170020 - 20;
10170025 - 25;
10170032 - 32

Material: PPR.

Operating temperature: 80°C.
Maximum operating temperature: 90°C.

Nominal pressure, PN: 25 bar.

Installation technology: bell-shaped polyfusion welding.

Color: White/Grey

Country of origin: Russia
