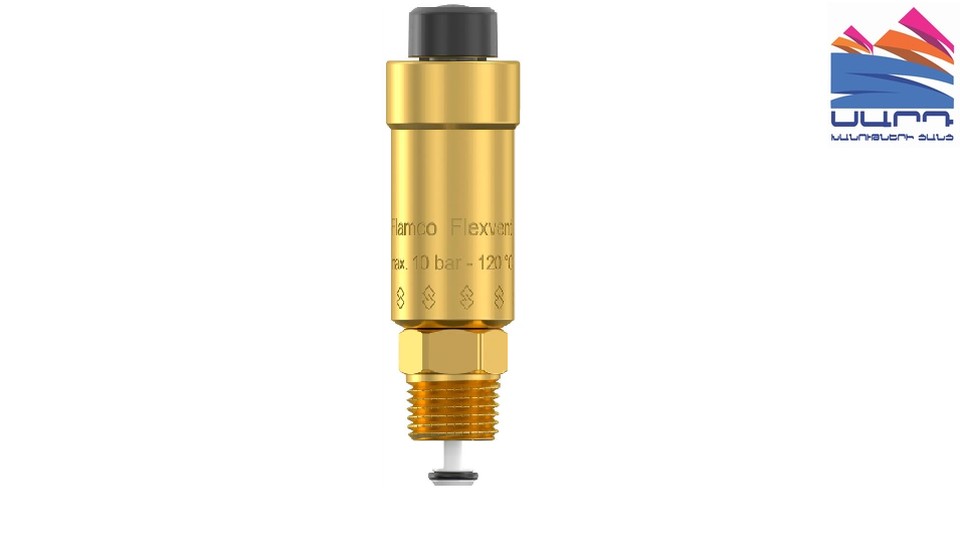

Automatic air vent 1/2" HP with Flamco shut-off valve

Details

Automatic air vent 1/2" HP with Flamco shut-off valve

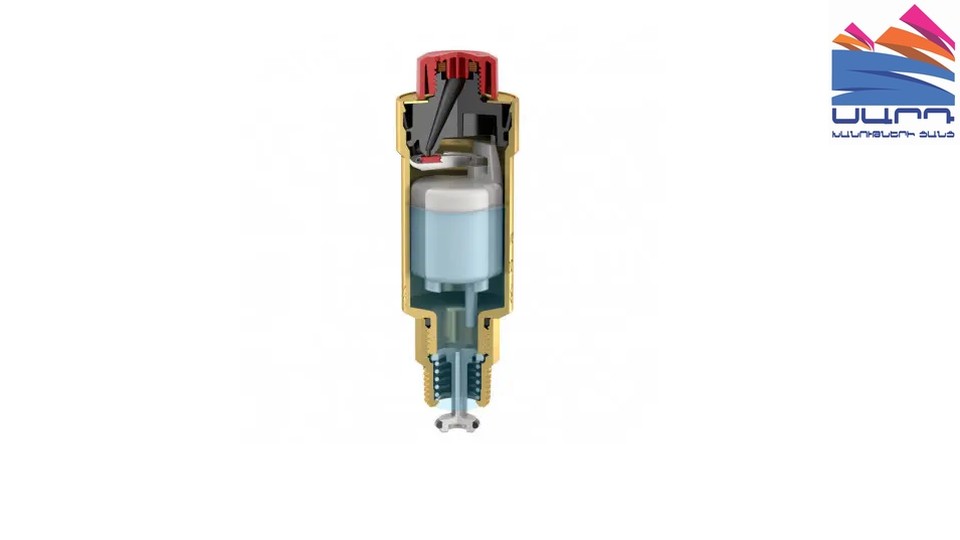

Flexvent is installed in places where air accumulates. The operation of the device is based on the float principle: the air entering the Flexvent lowers the water level inside the valve, lowering the float, which opens the air release valve. When the air is released, the water level inside the valve rises, the float pops up and closes the valve.

The model is equipped with a shut-off valve, which simplifies the installation and disassembly process.
Due to its small size, it is easily installed in any system.
A relatively large inflatable cushion installed at the top of the Flexvent protects the valve seat from contamination and eliminates leaks.
The factory tests that Flexvent air vents undergo ensure the highest quality of these products.

Appointment
For air conditioning, For heating

Type
Air vent

Pressure
10 bar


1/2" diameter

Material
Brass

Connection type
For vertical pipeline

Country of origin of the product
Germany
