Square brass 2" BP Valfex

Details

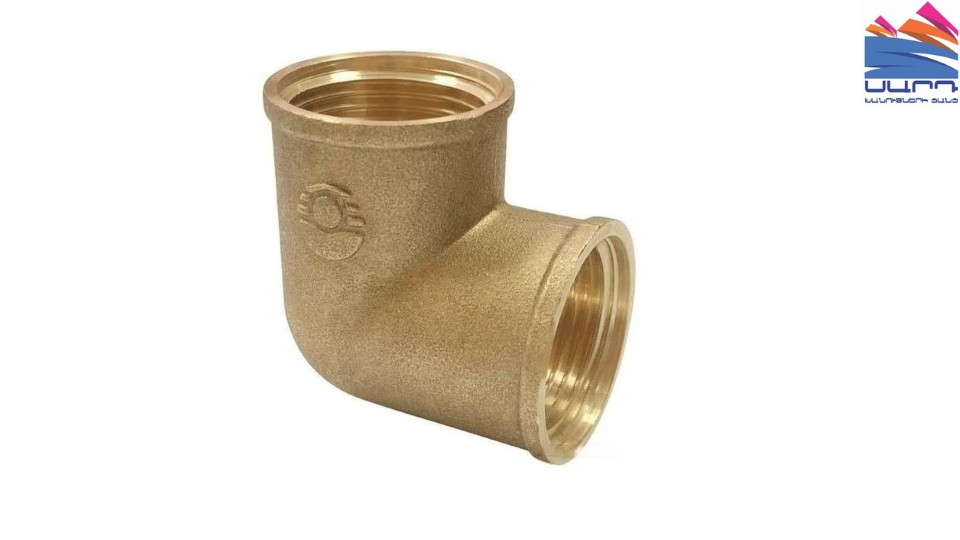

A square is an angular brass fitting that allows you to connect two pipes at right angles.

Appointment: for creation of detachable threaded connections on pipelines of cold drinking, household and hot water supply, heating, compressed air and on technological pipelines transporting gases and liquids.

Brand: VALFEX

Material: Brass

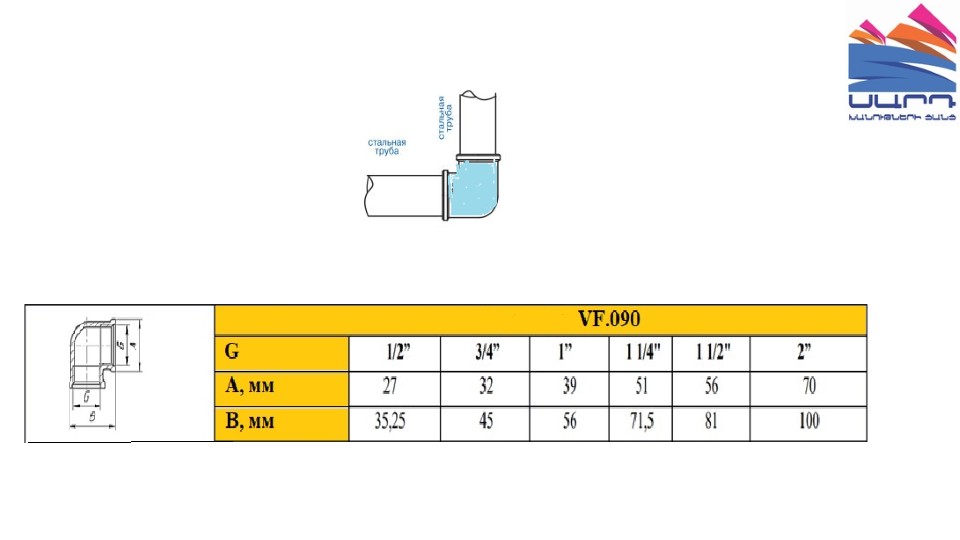

Code diameter, (inch):

VF.090.L.012 - 1/2"
VF.090.L.034 - 3/4"
VF.090.L.100 - 1"
VF.090.L.112 - 1 1/2"
VF.090.L.114 - 1 1/4"
VF.090.L.200 - 2"

Thread Type: Internal/ Internal

Nominal pressure, MPa: 4.0

Working environment temperature, °C: -20÷+200
Ambient temperature °C: -40÷+60
Ambient humidity, %: 0÷85

Country of origin: Russia
